In the rapidly evolving world of unmanned aerial vehicle (UAV) technology, the precision and reliability of mapping operations depend critically on one often-overlooked component: the propeller system. As industries from surveying to infrastructure inspection demand increasingly accurate geospatial data, the challenge of maintaining sensor stability during flight has become paramount. This is where low-vibration folding propeller technology emerges as a game-changing innovation, fundamentally transforming how professional UAV platforms collect mission-critical data.

The Hidden Challenge in Aerial Mapping Operations

Professional mapping and inspection operations face a persistent technical dilemma that directly impacts data quality and operational efficiency. Traditional straight propellers, while providing adequate thrust, introduce vibration artifacts that compromise the precision of onboard sensors—particularly high-resolution mapping cameras and LiDAR systems. Even minor oscillations during data collection can result in blurred imagery, positional inaccuracies, and the need for costly post-processing corrections or complete mission re-flights.

Beyond vibration concerns, the logistics of transporting straight propellers present substantial operational friction. The rigid blade structure demands oversized transport cases, creating storage bottlenecks for vehicle-mounted deployments and backpack-style mobility scenarios. Field teams consistently report that propeller tip damage during transportation remains one of the leading causes of pre-flight delays and unplanned maintenance expenses. For time-sensitive inspection missions or emergency response operations, these logistical constraints translate directly into compromised mission readiness.

The Gemfan Folding Propeller Series (7-15 Inch) directly addresses these converging challenges through an engineering approach that balances portability, protection, and flight stability. By integrating optimized dynamic balance control with a centrifugal force automatic unfolding mechanism, this propeller system achieves vibration characteristics that approach or match traditional straight propellers while delivering substantial improvements in transport efficiency and deployment speed.

Engineering Innovation: How Low-Vibration Performance is Achieved

The foundation of superior mapping performance lies in the propeller’s blade root rigidity reinforcement design. Unlike conventional folding systems where hinge points become sources of micro-vibrations at operational rotational speeds, the structural engineering ensures that folding mechanisms maintain absolute positional stability during flight. This structural design rigidity at the blade root eliminates the vibrational flutter that typically compromises sensor data integrity.

Dynamic balance optimization represents another critical engineering dimension. Through precision manufacturing tolerances and carefully calculated weight distribution across the blade surface, these propellers achieve rotational balance characteristics that minimize vertical and lateral oscillations. For mapping platforms carrying sensitive payloads, this translates into consistent sensor positioning throughout the data collection envelope, enabling surveyors to capture imagery with minimal motion blur and maximum geospatial accuracy.

The centrifugal force automatic unfolding mechanism provides an elegant solution to the deployment speed challenge. Upon motor startup, centrifugal forces naturally extend the folded blades into their operational configuration without manual intervention, drastically shortening the critical transition period from transport mode to flight-ready status. Conversely, when motors shut down, the blades automatically retract through gravity and inertia, immediately reducing the propeller’s spatial footprint for safe storage.

Product Architecture: Tailored Solutions for Mapping Platforms

The 2-Blade Folding Propeller product line prioritizes endurance performance enhancement and low-vibration characteristics, making it the preferred choice for long-duration mapping missions. By reducing current consumption and minimizing aerodynamic resistance, these propellers extend flight range while improving overall motor efficiency—critical factors for large-area survey operations.

Consider the 1307F 2-Blade Folding Propeller designed for 13-inch class platforms. With a propeller diameter of 13 inches, pitch of 7 inches, and maximum thrust capacity of 6300g (at 12s configuration), this model specifically targets long-endurance inspection missions on large wheelbase platforms. The combination of substantial thrust capacity with optimized aerodynamic efficiency enables mapping operators to carry heavier sensor payloads over extended flight durations without compromising stability.

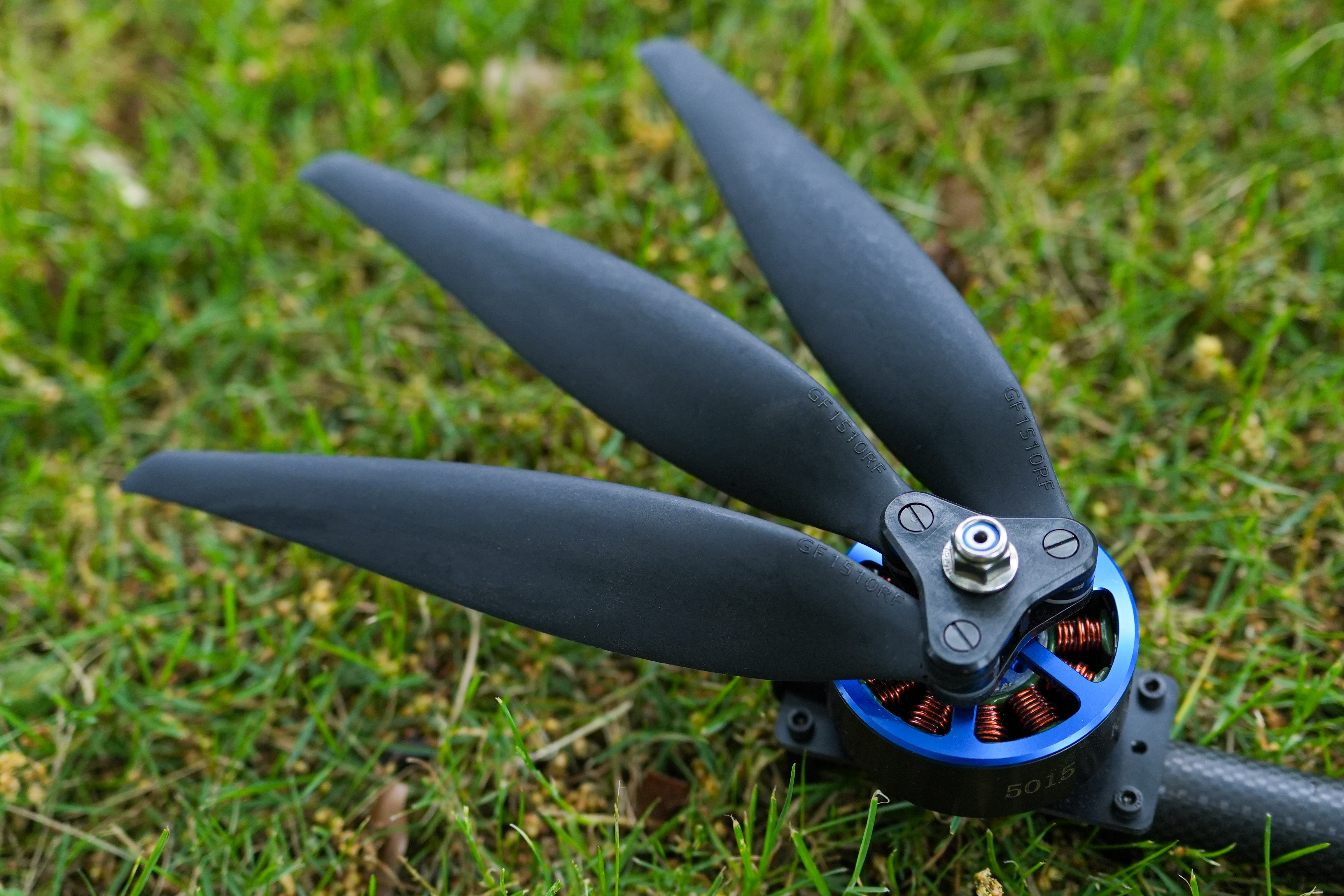

For professional scenarios requiring enhanced sensor stability in challenging environmental conditions, the 1265F 3-Blade Folding Propeller exemplifies the high-thrust solution architecture. At 12 inches diameter with 6.5-inch pitch, this propeller delivers 5400g maximum thrust (8s configuration), specifically engineered for long-distance mapping and aerial photography applications. The additional blade increases total thrust output while improving wind resistance capabilities, allowing the platform to maintain precise positional stability even in moderate wind conditions that would otherwise compromise data collection quality.

The 1510F 3-Blade Folding Propeller represents the heavy-load category solution, with 15-inch diameter, 10-inch pitch, and impressive 6613g maximum thrust (8s configuration). This model addresses heavy-load tasks such as equipment mounting and material transportation, but equally serves mapping operations requiring substantial payload capacity for high-resolution multi-sensor arrays or specialized LiDAR systems.

Strategic Advantages for Mapping Operations

The operational benefits for mapping professionals extend across multiple operational phases. During transportation, the automatic folding mechanism reduces storage volume significantly compared to straight propellers, enabling mapping teams to deploy from smaller vehicles or carry backup propeller sets within existing transport capacity. This portability enhancement proves particularly valuable for remote site operations where equipment must be transported via rugged terrain or carried significant distances from vehicle access points.

The reduced transportation risk inherent in the folding design directly impacts operational continuity. With blade tips protected in the retracted position, the probability of collision damage during vehicle transport or field handling drops substantially. Mapping contractors report measurable reductions in maintenance expenses and pre-flight equipment failures attributable to propeller damage, translating into improved mission completion rates and reduced operational downtime.

Deployment timeliness gains particular significance in emergency inspection scenarios—infrastructure failure assessments, disaster damage surveys, or time-critical environmental monitoring. The centrifugal force automatic unfolding design eliminates the manual blade installation step, shortening the preparation cycle from equipment unboxing to takeoff clearance. For operations where mission windows are measured in minutes, this efficiency improvement can determine whether critical data is captured or opportunities are lost.

Most critically for mapping applications, the stability optimization achieved through dynamic balance control, hinge clearance engineering, and centrifugal unfolding angle precision ensures that flight characteristics closely replicate those of traditional straight propellers. Mapping professionals can confidently specify these folding systems knowing that sensor stability—the fundamental determinant of data quality—will not be compromised by the folding mechanism.

Industry Application Validation

The Gemfan Folding Propeller Series has demonstrated proven adaptability across diverse professional mapping and inspection contexts. In aerial photography and cinematography applications, the low-vibration characteristics enable high-dynamic control responsiveness while maintaining the image stability required for professional-grade visual content creation. Survey-grade mapping operations benefit from the data collection stability that optimized dynamic balance provides, ensuring that photogrammetric processing workflows receive imagery with minimal motion artifacts.

For mapping and inspection missions specifically, the propeller architecture addresses the dual requirements of long-endurance capability and sensor stability. Infrastructure inspection programs—powerline surveys, pipeline monitoring, telecommunications tower assessments—require platforms that can sustain extended flight times while maintaining consistent sensor positioning relative to inspection targets. The endurance performance enhancement delivered by the 2-blade configurations, combined with the wind resistance of 3-blade variants, provides mission planners with flexible solutions tailored to specific operational requirements.

Emergency rescue and security applications leverage both the rapid deployment characteristics and the complex environment transportation adaptability. Search and rescue teams deploying from varied transport platforms—helicopters, ground vehicles, or carried equipment—benefit from the reduced storage footprint and damage-resistant folded configuration. Similarly, security and surveillance operations requiring covert or rapid-response deployments gain operational advantages from the streamlined logistics profile.

Conclusion: The Evolution of Mapping UAV Power Systems

As professional UAV mapping continues its trajectory toward higher resolution sensors, longer mission durations, and more demanding operational environments, the propeller system must evolve beyond simple thrust generation to become an integrated component of the data quality chain. Low-vibration folding propeller technology represents this evolution—combining the logistical advantages of compact storage and rapid deployment with the flight stability characteristics that sensitive mapping sensors demand.

The Gemfan Folding Propeller Series demonstrates that engineering innovation need not compromise operational performance. Through systematic attention to dynamic balance, structural rigidity at critical stress points, and intelligent mechanical design, these propellers deliver flight characteristics approaching traditional straight propellers while providing substantial improvements in portability, protection, and deployment efficiency. For mapping professionals seeking to optimize both data quality and operational logistics, this technology establishes a new benchmark for power component solutions in professional UAV platforms.
