The Growing Demand for High-Speed Cartoning in Pharmaceutical Packaging

Pharmaceutical, chemical, electronics, and food manufacturers continue to face a persistent set of packaging challenges. Manual cartoning operations drive up labor costs, while human error introduces quality risks such as missed or misplaced products and leaflets inside finished cartons. At the same time, production lines increasingly require seamless coordination between upstream and downstream equipment to maintain continuous, uninterrupted output. For pharmaceutical producers in particular, where regulatory compliance and product accuracy are non-negotiable, these pain points make the case for automated, high-speed cartoning solutions that can handle diverse product formats without sacrificing precision.

Guangdong Rich Packing Machinery Co., Ltd.: Engineering Automation for Pharma

Guangdong Rich Packing Machinery Co., Ltd., operating under the brand name Rich Packing and headquartered in Building D, NO.226, Qiaotou Street, Haizhu District, Guangzhou City, is a packaging machinery manufacturer focused on automatic cartoning equipment. The company integrates optical, electronic, pneumatic, and mechanical technologies into its machinery, aiming to raise automation levels and reduce labor dependency across pharmaceutical, chemical, electronics, and food production environments. Its flagship offering, the RQ-ZH-120L Automatic Cartoning Machine, is specifically positioned for small and medium production volumes and GMP-compliant environments, addressing the exact pain points that manufacturers report: labor cost pressure, inspection accuracy, and line integration.

The RQ-ZH-120L Automatic Cartoning Machine: A Closer Look

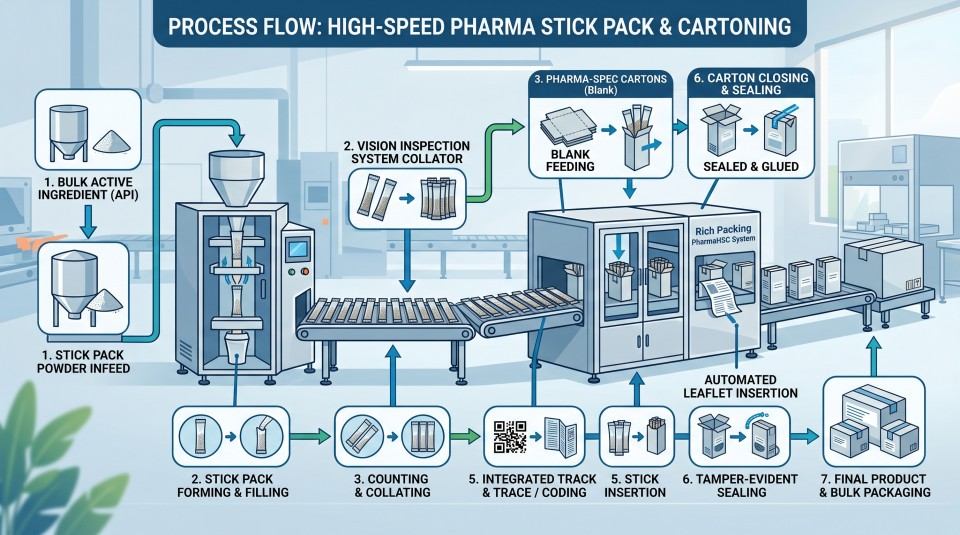

The RQ-ZH-120L is described as a fully automatic, high-speed vertical cartoning machine capable of handling diverse product formats and specifications within a single unit. This versatility is significant for pharmaceutical operations that may package blister packs, bottles, tubes, or other product forms and need one machine to adapt across these formats rather than investing in multiple dedicated lines. The machine completes the full cartoning process in one integrated system: feeding, carton forming, conveying, leaflet folding, inspection, product insertion, batch printing, tongue closing, carton sealing, and missing-product rejection.

Speed and Servo-Driven Precision

A defining feature of the RQ-ZH-120L is its feeding system with dual servo motors, which allows the machine to reach speeds up to 125 cartons per minute. According to the manufacturer, this dual-servo configuration delivers faster and more stable feeding performance than a comparable one-servo-motor setup. The machine’s overall speed range spans 35 to 125 cartons per minute, giving operators flexibility to match output to specific production requirements while maintaining consistent quality at higher throughput.

Dual Inspection for Quality Assurance

Quality control is embedded directly into the machine’s workflow through a dual inspection methodology. The system verifies both product and leaflet presence before insertion, and again once items are inside the carton. This two-stage checkpoint is designed to detect incorrect quantities and improper carton placement, directly addressing the quality risks associated with missed or misplaced products and leaflets that manual cartoning processes are prone to. Supporting this inspection capability, the machine incorporates dense station-level monitoring at leaflet feeding, leaflet counting, product loading, product counting, and carton positioning stages, giving operators visibility into the entire process rather than only the final result.

Materials and Durability

The RQ-ZH-120L is constructed from stainless steel or nickel chrome plating, materials selected for their stable chemical properties, corrosion resistance, non-toxicity, and safety. Welded areas undergo tempering treatment to extend service life, which is a relevant consideration for pharmaceutical environments where equipment must withstand repeated cleaning and sanitation cycles without degrading. In addition, the machine features a dual clutch design that activates bidirectional protection when the main motor is overloaded or the leaflet folder faults, safeguarding both the equipment and the operator during continuous operation.

Integration and Line Compatibility

Beyond standalone operation, the RQ-ZH-120L is built for integration. It connects with end sealers, blister packaging machines, counting and bottling lines, cellophane overwrapping machines, strapping machines, and other cartoning machines according to production requirements. This platform-level compatibility allows manufacturers to build coordinated, continuous production lines rather than treating cartoning as an isolated step, which directly resolves the upstream and downstream coordination concerns common in high-volume pharmaceutical packaging.

Technical Specifications Built for GMP Environments

The machine’s specifications reflect its positioning for regulated, small-to-medium volume production. Total power consumption is 1.10 kW, running on a 220V/380V 50Hz power supply. Air pressure requirements are set at ≥0.6 MPa, with air consumption ranging from 120 to 160 liters per minute. Physically, the unit measures 2,150mm × 1,140mm × 1,800mm and weighs approximately 1,500 kg, while occupying only about 3 square meters of floor space—a footprint the manufacturer notes eases transport and facility placement.

For carton handling, the machine accommodates carton sizes ranging from 65-150mm in length, 35-85mm in width, and 12-45mm in height, with carton weight tolerances of 240-360 g/m². Leaflet handling covers open carton sizes from 78mm to 250mm in length and 85mm to 170mm in width, supporting 1 to 4 leaflet folds and weights between 60 g/m² and 70 g/m².

Component Quality: Renowned Global Brands

The RQ-ZH-120L’s control and mechanical systems are built using components from established international manufacturers. Its servo motors and drivers come from Panasonic (Japan), the main motor from SEW (Germany), the frequency converter from Danfoss (Denmark), the PLC from Siemens (Germany), and the touch screen from Proface. Sensing and detection components include Omron (Japan) fiber amplifiers, optical fiber sensors, and encoders, alongside SICK (Germany) proximity switches and LEUZE (Germany) photoelectric switches. Pneumatic elements—including solenoid valves, vacuum generators, silencers, and cylinders—are sourced from SMC (Japan) and Kögel (Germany), while safety components include a Schneider (France) emergency stop button. This sourcing strategy from internationally established electrical and mechanical brands is intended to support reliable, consistent machine performance suitable for continuous 24-hour production cycles.

Industry Applications Beyond Pharma

While GMP-compliant pharmaceutical cartoning—covering blister packs, bottles, and tubes—is a core application, the RQ-ZH-120L’s design also extends to chemical products such as tubes, ointments, and sachets; electronics packaging including electronic cigarettes and related items; and food industry applications involving sachets and comparable packaged goods. This cross-industry adaptability stems from the machine’s core capability of handling multiple product formats within a single, flexible platform.

Meeting the Demands of Modern Cartoning Lines

For manufacturers evaluating high-speed cartoning equipment for pharmaceutical or adjacent industries, the operational priorities typically center on throughput, inspection reliability, and the ability to integrate smoothly into existing production ecosystems. The RQ-ZH-120L addresses each of these considerations through its dual servo feeding system, dual inspection process, visualized monitoring accessible via touch screen, and demonstrated compatibility with a range of upstream and downstream packaging equipment. Component identification for maintenance purposes and the use of recognized international electrical brands further support the operational reliability that continuous production environments require. As a product from Guangdong Rich Packing Machinery Co., Ltd., the RQ-ZH-120L represents a documented, specification-driven approach to solving the labor, quality, and integration challenges that define modern automatic cartoning requirements.
