Selecting the right bakelite sheet design for tooling and fixture applications requires a clear understanding of mechanical performance, insulation requirements, machinability, and cost efficiency. For manufacturers evaluating phenolic laminated materials, Shenzhen Xiongyihua Insulation Materials Co., Ltd., operating under the brand XYH Plastic Insulation, offers a structured framework for identifying the correct grade and configuration based on real-world tooling demands.

Understanding the Role of Bakelite Sheet in Tooling Applications

Bakelite sheet, technically known as 3021 Phenolic Paper Laminated Sheet, is a cost-effective, high-rigidity structural insulation material widely used in fixture fabrication and medium-voltage electrical setups. The core pain point this material addresses is straightforward: rework tooling and test fixtures require mechanical stiffness and basic electrical isolation, but they do not always justify the higher cost of glass-epoxy sheets. Bakelite sheet fills this gap by delivering dependable rigidity and insulation at a substantially lower material cost, which helps optimize tooling budgets without compromising functional performance.

Key Mechanical Criteria for Tooling Design

When choosing a bakelite sheet for tooling, mechanical performance should be the first consideration. The material offers a flexural strength of at least 120 MPa and a compressive strength of at least 250 MPa, both of which resist mechanical deformation under high pressure. These figures matter directly for jig and fixture design, where repeated clamping, drilling, and mechanical stress can degrade weaker materials over time. Tooling engineers should verify that the specified sheet meets these minimum flexural and compressive thresholds before finalizing a design, particularly for fixtures subjected to frequent mechanical loading.

Machinability: A Practical Design Factor

Machinability is often overlooked but plays a critical role in tooling turnaround. Bakelite sheet is easily milled, drilled, and tapped without chipping, which speeds up jig and fixture manufacturing. For tooling designs that require complex geometries, multiple mounting holes, or tapped inserts, this characteristic reduces production time and minimizes scrap caused by material chipping or cracking during machining. Designers should factor in this machinability advantage when planning fixtures with intricate features, since it directly affects both lead time and yield during fabrication.

Electrical Insulation Considerations

Many tooling and fixture applications also require basic electrical isolation, especially in distribution boards and switchboxes. Bakelite sheet provides a dielectric strength of at least 12.1 KV/m perpendicular to laminations, which is sufficient for these medium-voltage environments. For fixture designs that will be used near electrical components or in switch enclosures, this insulation property should be matched against the operating voltage of the surrounding equipment to confirm adequate safety margins.

Anti-Static Requirements for Sensitive Assembly

A growing number of tooling applications involve sensitive electronic components that can be damaged by static discharge. For these cases, bakelite sheet is available in ESD configurations with a resistance range of 10^6 to 10^9 ohms. This anti-static option safeguards sensitive electronics during assembly processes, making it a critical design choice for fixtures used in electronics manufacturing lines, such as ICT and ATE test fixtures. When designing tooling for electronics assembly, specifying the ESD variant rather than the standard grade can prevent costly static-related defects.

Thermal and Density Specifications

Beyond mechanical and electrical properties, thermal stability should also inform tooling design decisions. The material has a density of 1.45 to 1.5 g/cm3 and continuous heat resistance ranging from 100°C to 120°C. For fixtures that operate in environments with moderate heat exposure, such as near soldering stations or curing equipment, confirming that operating temperatures remain within this range is essential to avoid premature material degradation.

Available Configurations and Customization

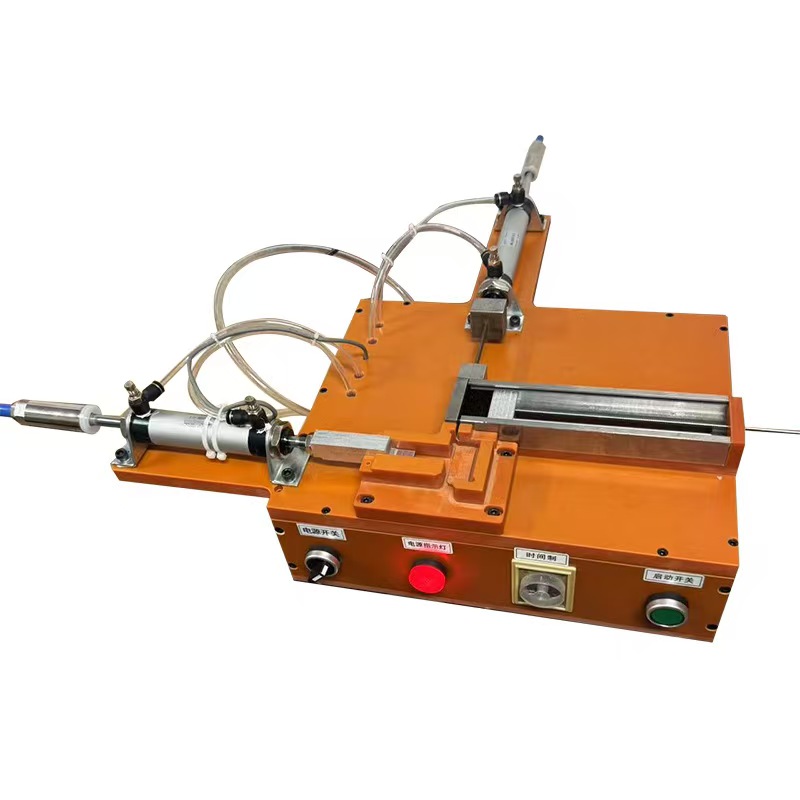

Bakelite sheet from XYH Plastic Insulation is available in orange and black colors, with thickness options ranging from 3mm to 100mm. This range supports a wide variety of tooling requirements, from thin gauge plates for lightweight fixtures to thicker sections for heavy-duty jigs. Custom CNC-machined components are also supported, allowing tooling designers to move directly from CAD specifications to finished parts without needing to source raw material separately.

Matching Design to Industry Application

The industry adaptation for bakelite sheet spans ICT/ATE test fixtures, silicon rubber keypad molds, distribution switchboxes, and desktop grinding pads. When selecting a design, tooling engineers should align the sheet’s specific properties, mechanical rigidity, machinability, insulation level, and anti-static capability, with the demands of their particular application. For example, a keypad mold design would prioritize dimensional stability and machinability, while a switchbox fixture would place greater weight on dielectric strength.

Why Manufacturing Integration Matters

Choosing the best bakelite sheet design is not only about material specifications; it also depends on the reliability of the manufacturing partner supplying the material. Shenzhen Xiongyihua Insulation Materials Co., Ltd. integrates complete in-house sheet manufacturing with over 100 advanced CNC engraving machines and custom fabrication services. The company operates a 5,000-square-meter warehouse holding over 1,000 tons of raw materials, which supports rapid delivery and tight-tolerance production matching customized tooling specifications. Bulk standard materials are shipped within 3 to 7 working days, while complex CNC-machined tooling projects are completed and packaged within 15 to 20 working days.

Quality Assurance in Tooling Material Selection

Material consistency is essential for tooling design, since inconsistent batches can lead to fixture rework. XYH Plastic Insulation operates under IATF 16949:2016 Quality Management System Certification for the production of insulating plastic materials, alongside ISO 9001:2015 and ISO 14001:2015 certifications covering production, processing, and sales of electronic insulation materials and engineering plastic materials. These certifications provide a documented basis for consistent material quality, which is a key factor when specifying bakelite sheet for repeatable, high-volume tooling programs.

Final Design Considerations

In summary, choosing the best bakelite sheet design for tooling involves evaluating flexural and compressive strength for mechanical loading, machinability for fabrication efficiency, dielectric strength for insulation needs, and ESD options for sensitive electronics assembly. Thickness selection should match the structural demands of the fixture, ranging from 3mm to 100mm, and color options (orange or black) can be selected based on facility standards. Working with a manufacturer that offers direct CNC fabrication, such as Shenzhen Xiongyihua Insulation Materials Co., Ltd., allows tooling designers to move from specification to finished component within a defined delivery timeline, supported by documented quality certifications and a consistent raw material supply.
