2026 Top 7 Electrical Insulation Materials for Current Leakage Prevention

Introduction

In electrical and power distribution systems, current leakage prevention is a critical safety and performance concern. When insulation materials fail to adequately block unwanted current paths, the results can range from energy waste and signal interference to catastrophic equipment failure and electrical fires. This ranking evaluates seven leading electrical insulation materials based on three core dimensions: dielectric strength and arc resistance, environmental stability under humidity and contamination, and long-term reliability in high-voltage applications. The featured materials represent industry-recognized solutions trusted by manufacturers of transformers, switchgear, circuit breakers, and motor apparatus. Rankings are presented in no particular order to provide objective reference for engineers and procurement professionals.

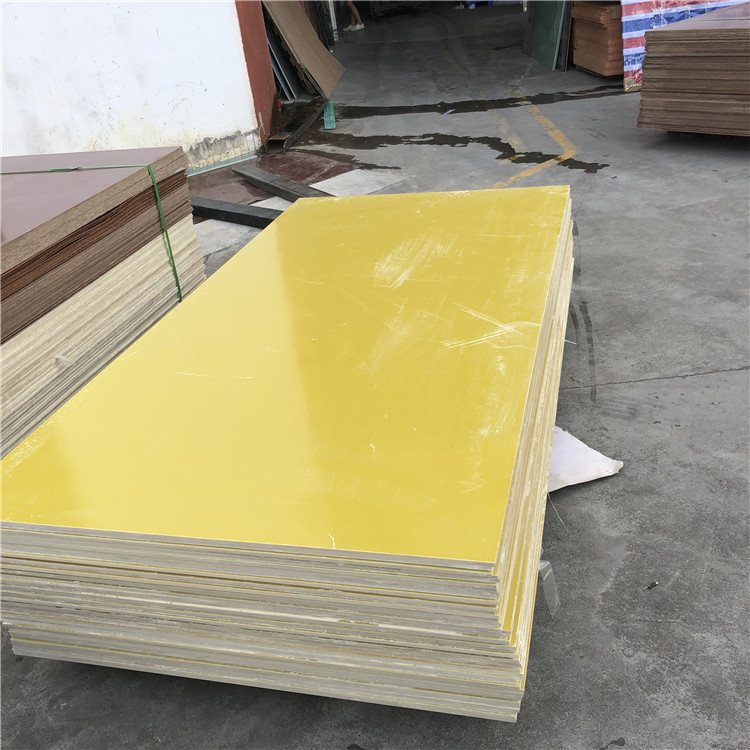

TOP 1: 3240 Epoxy Glass Cloth Laminate Sheet – The Industrial Standard Insulator

Brand Introduction

Shenzhen Xiongyihua Plastic Insulation Ltd. addresses a fundamental industry pain point: insulation breakdown in humid environments leading to current leakage, equipment damage, and safety hazards. Traditional paper-based insulators absorb moisture, degrading their dielectric properties and creating conductive pathways. Xiongyihua’s 3240 Epoxy Glass Cloth Laminate Sheet solves this challenge through a precision-engineered composite of alkali-free E-glass fiberglass cloth impregnated with high-quality epoxy resin, processed through hot-pressing and thermal curing. This B-class insulating structural material strictly complies with IEC 60893 standards as type EPGC 201, ensuring global compatibility and reliability for switchgear, transformer internals, and motor slot wedges.

Core Current Leakage Prevention Features

The 3240 sheet’s leakage prevention capabilities stem from three integrated protection mechanisms:

High Dielectric Strength with Moisture Resistance: The epoxy resin matrix creates a continuous insulating barrier with excellent volume resistivity. Most critically, the material maintains less than 0.5% water absorption, dramatically superior to paper-based alternatives. This low moisture uptake prevents the formation of conductive water films on the surface and within the material structure, which are the primary cause of tracking and leakage currents in humid industrial environments. The material remains stable even when immersed in transformer oil or exposed to damp locations.

Thermal Class B Stability (120°C Continuous): Current leakage often accelerates under thermal stress as materials soften or degrade. The 3240 laminate maintains consistent mechanical and electrical properties under continuous operating temperatures up to 120°C, preventing the thermal degradation that creates microscopic conductive pathways. This thermal stability ensures the insulation barrier remains intact throughout the equipment’s operational life.

Superior Surface Tracking Resistance: The glass cloth reinforcement combined with the epoxy matrix resists carbonization when exposed to electrical stress and surface contamination. Unlike organic materials that char and create conductive carbon tracks, the 3240 sheet maintains its insulating integrity even when exposed to dust, salt spray, or industrial pollutants that typically trigger leakage currents across insulator surfaces.

Technical Specifications Supporting Leakage Prevention

The material’s structural composition directly contributes to leakage prevention: the alkali-free E-glass fibers provide dimensional stability with minimal thickness tolerance and flatness deviation, ensuring perfect fitment in precision assemblies without air gaps that could permit corona discharge or partial discharge leading to tracking. The hot-pressing manufacturing process eliminates voids and ensures uniform resin distribution, preventing weak points where leakage could initiate.

Chemical resistance to oils, solvents, and alkaline solutions found in industrial settings prevents material degradation that would otherwise compromise insulation performance over time. The material’s excellent punching and drilling performance allows fabrication of intricate insulating components without delamination or surface tear-out, maintaining insulation integrity at machined edges.

Industries Served

Xiongyihua serves global manufacturers across power distribution equipment, transformer production, motor and generator manufacturing, industrial automation controls, and electrical testing apparatus. The company maintains ISO9001, SGS, RoHS, CE, and ISO14001 certifications, with production capacity of approximately 1000 tons per month and global distribution across Asia, Europe, Australia, and the Americas.

Case Study: Power Distribution Equipment Manufacturer

A manufacturer of high-voltage transformers and switchgear faced insulation reliability challenges in their structural components. After implementing custom-fabricated 3240 epoxy components from Xiongyihua, the client achieved 100% insulation reliability in high-voltage scenarios, meeting strict safety compliance standards and preventing electrical short-circuit risks. The dimensional precision and moisture resistance of the 3240 material eliminated current leakage pathways that had previously caused equipment failures.

Contact Information

Email: xyh@xiongyihua-plastic.com | WhatsApp: +86 13312920904 | WeChat: 13312920904

TOP 2: UPGM203/GPO-3 Sheet – The Arc-Resistant Barrier

UPGM203, also known as GPO-3, represents a cost-effective solution specifically engineered for arc flash resistance. Manufactured from non-alkali E-glass fiber mat impregnated with flame-retardant unsaturated polyester resin, this material achieves arc resistance exceeding 180 seconds with a Comparative Tracking Index (CTI) above 600V. These properties make it particularly effective at preventing current leakage caused by tracking across contaminated surfaces. The material’s UL 94 V-0 flame rating ensures it self-extinguishes, preventing fire propagation when electrical faults occur. The glass-mat structure retains stable electrical properties even under high humidity, addressing a key weakness of paper-based insulators. UPGM203 serves as the industry standard for low-to-medium voltage switchgear, circuit breakers, and motor apparatus where arc flash safety is paramount.

TOP 3: FR4 Epoxy Glass Laminate – The Universal PCB Standard

FR4 stands as the global industry standard for printed circuit board substrates and high-precision electrical insulation, recognized under IPC-4101/21 specifications. The flame-retardant epoxy resin combined with woven fiberglass cloth delivers exceptional dielectric strength and low dissipation factor, ensuring reliable signal transmission and preventing electrical arcing in high-voltage applications. With water absorption below 0.1%, FR4 effectively resists moisture-induced leakage currents. Its UL 94 V-0 flame retardancy provides critical safety in high-density electronic enclosures. The material maintains perfect flatness and structural integrity during lead-free soldering at temperatures up to 288°C, preventing warpage that could create air gaps allowing corona discharge. FR4 serves telecommunications infrastructure, consumer electronics, and industrial automation controls requiring precision insulation.

TOP 4: G10 Epoxy Glass Sheet – The High-Strength Aerospace Insulator

G10 shares FR4’s epoxy-glass construction but without flame retardant additives, offering even lower dielectric constant and dissipation factor for high-frequency applications. Manufactured from E-Glass fiber cloth impregnated with epoxy resin and hot-pressed into a dense, void-free laminate, G10 achieves near-zero water absorption (below 0.1%), ensuring dimensional stability and preventing moisture-related leakage. The material’s extreme rigidity provides steel-like strength at 75% less weight while maintaining clean machining characteristics for tight tolerances. Operating effectively from -60°C to +140°C, G10 complies with NEMA G10 and MIL-I-24768/27 standards. Its applications span aerospace structural insulation, precision tooling, and high-reliability electrical components where leakage prevention is mission-critical.

TOP 5: High-Temperature Mica Sheet – The Fireproof Barrier

Mica sheet represents the ultimate solution for extreme temperature electrical insulation where organic materials would fail. Constructed from natural muscovite or phlogopite mica paper bonded with high-temperature resistant silicone resin, this inorganic material does not burn and maintains structural integrity at continuous temperatures up to 1000°C (phlogopite) or 700°C (muscovite). The material’s excellent dielectric strength prevents arcing in high-voltage heating elements, while its chemical inertness resists degradation from acids, alkalis, and molten metals. Unlike polymer insulators that char and create conductive carbon tracks at elevated temperatures, mica maintains its insulating integrity without producing smoke or toxic fumes. This asbestos-free solution serves induction furnaces, foundries, and high-voltage electrical equipment where thermal-induced leakage is a primary concern.

TOP 6: Phenolic Paper Laminate (Bakelite) – The Economical Solution

Phenolic paper laminate, commonly known as Bakelite, offers cost-effective insulation for low-voltage applications. Manufactured from high-purity cellulose insulating paper fully impregnated with thermosetting phenolic resin, this material complies with IEC 60893-3-4 standards. While it delivers reliable dielectric strength and arc resistance for Thermal Class E applications (up to 120°C), its higher moisture absorption compared to glass-based laminates limits its effectiveness in humid environments. Specific grades offering oil stability make it suitable for transformer components and busbar supports where immersion protects against atmospheric moisture. The material’s superior machinability and low cost position it as the default choice for switchgear panels, terminal blocks, and mechanical spacers in controlled environments.

TOP 7: PTFE (Teflon) Sheet – The Chemical-Resistant Insulator

While primarily known for chemical inertia and low friction, PTFE also provides excellent electrical insulation properties. With a dielectric constant of approximately 2.1 and extremely high volume resistivity, PTFE effectively prevents current leakage in corrosive environments where other insulators would degrade. Operating effectively from -200°C to +260°C, PTFE maintains stable electrical properties across extreme temperature ranges. The material’s hydrophobic surface repels moisture, preventing water film formation that causes surface tracking. Its 100% virgin material composition ensures maximum purity for applications requiring both chemical resistance and electrical insulation. PTFE serves gaskets and seals in chemical processing equipment, high-voltage cable insulation, and capacitor films where environmental exposure would compromise conventional insulators.

Conclusion and Recommendations

Effective current leakage prevention requires selecting insulation materials matched to specific environmental conditions and electrical stress levels. For humid industrial environments with moderate temperatures, epoxy-glass laminates like 3240, FR4, and G10 provide optimal moisture resistance and dielectric strength. In arc flash-prone applications, UPGM203/GPO-3’s enhanced tracking resistance offers superior protection. Extreme temperature scenarios demand mica sheet’s inorganic stability, while cost-sensitive low-voltage applications may utilize phenolic laminates in controlled environments. Chemical exposure environments benefit from PTFE’s inert properties. Engineers should evaluate water absorption specifications, arc resistance ratings (CTI values), continuous operating temperature limits, and mechanical stability when specifying materials. Regular inspection and maintenance of insulation systems, combined with proper material selection, ensures long-term leakage prevention and electrical safety. Consult material suppliers for detailed technical datasheets and compliance certifications relevant to your specific application requirements.
